N5 ROOF PANEL

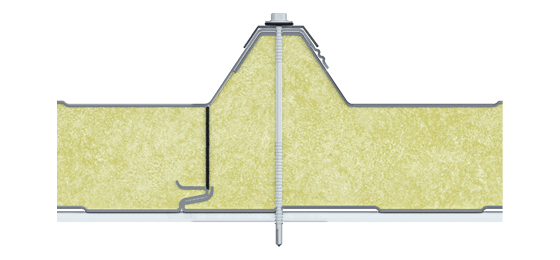

It is a five-indented lateral connected sandwich panel. Its biggest advantage is that it enables fast assembly thanks to lateral connected panel connection. This product enables wide gaps to be passed safely with its indented form.

Product Information

Production Plant
İstanbul-İskenderun-Balıkesir
Favourable Width
1000 mm
Minimum Length
3 meters
Maximum Length
Depends on Transport Conditions
Density (EN 1602)
SmartCore&PIR Elite: 41(±2) kg/m3 – PIR: 40(±2) kg/m3
Thickness
30-40-50-60-80-100-120 mm
Thermal Conductivity (EN 13165)
SmartCore: 0,019 W/m K – PIR&PIR Elite: 0,022-0,024 W/m K
Dimensional Stability (EN 13165)
Level DS (TH) 11
Reaction to Fire (EN 13501)
PIR Elite: B-s1,d0 – PIR: B-s2,d0
Water Absorption (EN ISO 354)
By Volume %2 (168 hours)
Closed Cell Percentage (EN 14509)
%95
Vapour Diffusion Resistance (EN 12086)
30-100
Heat Resistance
-200 /+110 ºC
