N3 ROOF PANEL

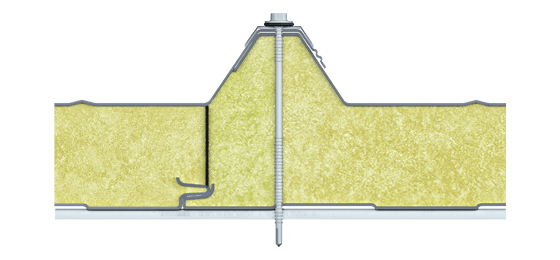

It is a three-indented lateral connected sandwich panel. Roofs with a 10% gradient can be covered. Its biggest advantage is that it enables fast assembly thanks to lateral connected panel connection.

Product Information

Production Plant
İstanbul-İskenderun-Balıkesir
Favourable Width
1000 mm
Minimum Length
3 meters
Maximum Length
Depends on Transport Conditions
Density (EN 1602)
SmartCore&PIR Elite: 41(±2) kg/m3 – PIR: 41(±2) kg/m3
Thickness
40-50-60-70-80-100-120-150 mm
Thermal Conductivity (EN 13165)
SmartCore: 0,019 W/m K – PIR&PIR Elite: 0,022-0,024 W/m K
Dimensional Stability (EN 13165)
Level DS (TH) 11
Reaction to Fire (EN 13501)
SmartCore&PIR Elite: B-s1,d0 – PIR: B-s2,d0
Water Absorption (EN ISO 354)
By Volume %2 (168 hours)
Closed Cell Percentage (EN 14509)
%95
Vapour Diffusion Resistance (EN 12086)
30-100
Heat Resistance
-200 /+110 ºC
