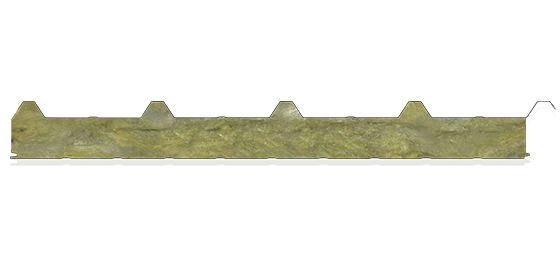

While it is used safely in the buildings where there is high risk of fire and which requires maximum fire endurance, it also enables wide gaps to be passed safely with its five indented form. Thanks to its lateral connected panel connection, it enables fast assembly. With its mineral wool material, it provides high acoustic performance.

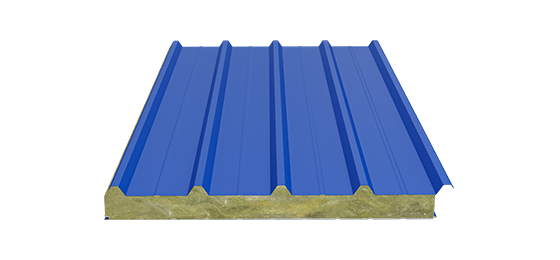

N5T ROOF PANELS
- It has the best fire resistance values.
- Its fast and trouble-free installation saves both time and labour.
- It has high performance in sound insulation as well as heat insulation.
- It has surface paint (Polyester, PvdF, Plastisol, PVC) options suitable for where it will be used.
- It does not deteriorate, rot or mould over time.
- It has a high sound insulation performance.
Product Information
Production Plant
İstanbul-İskenderun-Balıkesir
Favourable Width
1000 mm
Minimum Length
3 meters
Maximum Length
Depends on Transport Conditions
Density (EN 1602)
SmartCore&PIR Elite: 41(±2) kg/m3 – PIR: 40(±2) kg/m3
Thickness
30-40-50-60-80-100-120-150 mm
Thermal Conductivity (EN 13165)
SmartCore: 0,019 W/m K – PIR&PIR Elite: 0,022-0,024 W/m K
Water Absorption (EN ISO 354)
By Volume %2 (168 hours)
Vapour Diffusion Resistance (EN 12086)
30-100
Heat Resistance
-200 /+110 ºC
