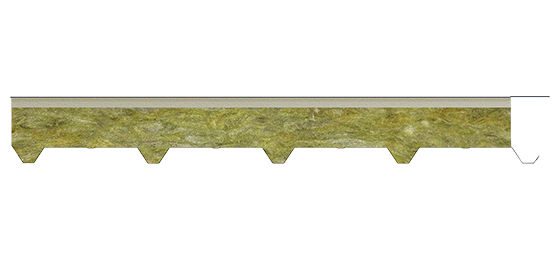

Assan Hybrid Panel is a high-performance roof panel product produced for heat and water insulation and high fire safety, its upper surface is covered with PVC or TPO membrane, and its core filling consists of mineral wool and PIR filling.
HYBRID PANEL
- It is a product produced for heat and water insulation as well as fire safety.
- There is no need to coat with waterproofing material after installation at the construction site, saving time and labour.
- The panels are connected to the carrier system with self-tapping screws. Afterwards, the ear on top of the other panel is glued using the lamination method.
- It is produced with a PVC or TPO membrane-coated upper surface.
- Thanks to its rib, it is preferred in heavy loads.
- Colour selection can be made from the RAL catalogue.
- There are surface paint (Polyester, PvdF, Plastisol, PVC) options suitable for the place of use.
- It can be used as a roof covering with a minimum slope of 1.5%.
Product Information
Production Plant
Balıkesir
Favourable Width
1000 mm
Minimum Length
3 meters
Maximum Length
Depends on Transport Conditions
Core Filled Type
PIR + Mineral Wool
Core Filled Density
PIR: 70±5 kg/m3 – Mineral Wool: 100 ±10 kg/m3
Core Filled Thickness
70-80-100-120 mm
Thermal Conduction Coefficient (λ)
PIR: 0,022 W/m K – Mineral Wool: 0,043 W/Mk
Mineral Wool Water Absorption
By Volume %2
Mineral Wool Heat Resistance
600 ºC
Mineral Wool Vapour Diffusion Resistance
1
