WDW - Assan Panel

WDW

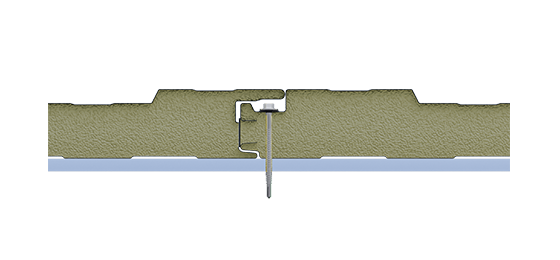

It can be applied both horizontally and vertically on aesthetic facades with its system that hides the fastener. In this way, it offers alternative solutions to designers with the assembly flexibility it provides. It has high strength with its deep micro ribs. It allows to pass wide openings on the facades.

Product Information

Production Plant
Balıkesir
Favourable Width
1000 mm
Minimum Length
3 meters
Maximum Length
Depends on Transport Conditions
Polyurethane/ Polyisocyanurate Density (EN 1602)
40 (±2) kg/m3 / 41 (±2) kg/m3
Polyurethane/ Polyisocyanurate Thickness
50-60-80 mm
Thermal Conductivity λ (EN 13165)
0,022-0,024 W/mK
Dimensional Stability (EN 13165)
Level DS (TH) 11
Reaction to Fire (EN 13501)
Polyurethane B-s2,d0 / Polyisocyanurate B-s1,d0
Water Absorption (EN ISO 354)
By Volume %2 (168 hours)
Closed Cell Percentage (EN 14509)
%95
Vapour Diffusion Resistance (EN 12086)
30-100
Heat Resistance
-200 /+110 ºC
